IQrouter V3 Tech Specs

The IQrouter has features that constantly improve your Internet quality and that monitor line conditions to ensure you get what you need and what you are paying for.

With notifications and reports to help troubleshoot and get Internet service providers to address line issues, the IQrouter is designed to help you get the best Internet possible from your line.

Features

  • Smart traffic management to minimize bufferbloat at all times for improved Internet Quality

  • In-router speed test for accurate line performance measurements that accounts for all traffic flowing through the router

  • Line status tracking, see changes to speeds, changes in latencies and logs line drops

  • Ping and bandwidth usage statistics make line or service problems visible

  • Email notifications when serious line changes or issues arise

  • Reachability test to test that port-forwards will work

  • Comprehensive Customer Dashboard report consolidates critical line performance information to help working with Internet service providers

  • WiFi Survey to detect and avoid WiFi conflicts from nearby Access Points

  • Secure Guest WiFi network - fully isolated station to station and station to LAN

  • Advanced Wi-Fi with reduced latencies, supporting the 802.11ac standard

  • Simultaneous high speed 5GHz and 2.4GHz WiFi connections ( AC1200 equivalent )

  • Full gigabit ports ensure ultra fast data transfer speeds

  • 4*5dBi external antennas provide great omni-directional wireless coverage and reliability

  • Supports IPV6 (Internet Protocol Version 6)

  • Easy one-touch wireless security enrollment with the WPS button

  • Over the air one-click software updates

Specifications

Software Features
IQ Optimization Smart Internet Quality optimization system to minimize Bufferbloat at all times
Router-based Speed test Highly accurate speed test accounts for all traffic
Ultra-fast line support Up to Gigabit downloads on DOCSIS 3.1 or fibre with low download latencies. Lines with latencies and using the traffic manager will be limited to under 350Mbps
Path length optionsChoose: regional (same country), oceanic (AU to US) or Satellite (GeoSync Sats).
Line tracking See critical line statistics such as synch and SNR statistics (select modems), line up/down times and periods and percentage of data loss. Also logs line latency variability due to congested backhauls or line issues.
Customer Dashboard See all the critical performance information regarding your line and IQ settings
WiFi Survey See WiFi settings and potential local conflicts, one button restart of channel selection process
WiFi latency mitigation Smooths WiFi for lower lag and variation
DSCP marks respectedTraffic marked for priority with DSCP takes precedence, ideal for VoIP hardware and smartphone WiFi-calling
Up-to-date components Critical components are recent versions. e.g. Underlying OS is Linux v4.14.215 (on IQrouter firmware 3.4.0) for greater performance and security
Over-the-air updatesCertain components in the IQ optimization process get regular automatic updates, the entire firmware can also be updated with just one-click (under user control)
Performance metrics Graphs of system performance metrics, including real-time data transfer rates
Configuration Wizard Simple configuration process make setup a breeze
Basic menus Simple, easy to use basic menu mode to set common settings
Advanced menus Allows advanced users (or support) to adjust any aspect of the configuration
UPnPFull UPnP support allows applications like Skype or games to self-configure for optimum performance (this feature can be turned off)
WAN TypeDynamic IP/Static IP/PPPoE/VLAN (DHCP Option 61 supported)
DHCPServer, Client, DHCP Client List
Address Reservation, adjustable ranges and subnet
Port ForwardingPort Forwards, UPnP, DMZ
VPN Pass-ThroughPPTP, L2TP, IPSec
Access ControlLocal Management Control, Host List
Rule Management
Firewall SecurityDoS, SPI Firewall
IP Address Filter/MAC Address Filter/Domain Filter
IP and MAC Address Binding
ManagementUnique administration password configured by user during setup
Local Management via Web Interface or via SSH
Internet ProtocolIPv4, IPv6 (IPV6 can be disabled on the WAN with one click)
DNS Caching server Router hosts a DNS caching service for greater efficiencies and speed
Wireless Features
Wireless StandardsIEEE 802.11a/n/ac, 5GHz
IEEE 802.11b/g/n, 2.4GHz
Frequency2.4GHz and 5GHz
Signal Rate5GHz: Up to 867Mbps
2.4GHz: Up to 300Mbps
Wireless QoSAirtime Fairness and AQL
Wireless FunctionsEnable/Disable Wireless Radio, WMM, Wireless Statistics
Wireless SecurityWEP, WPA / WPA2, WPA-PSK/ WPA2-PSK encryption (default)

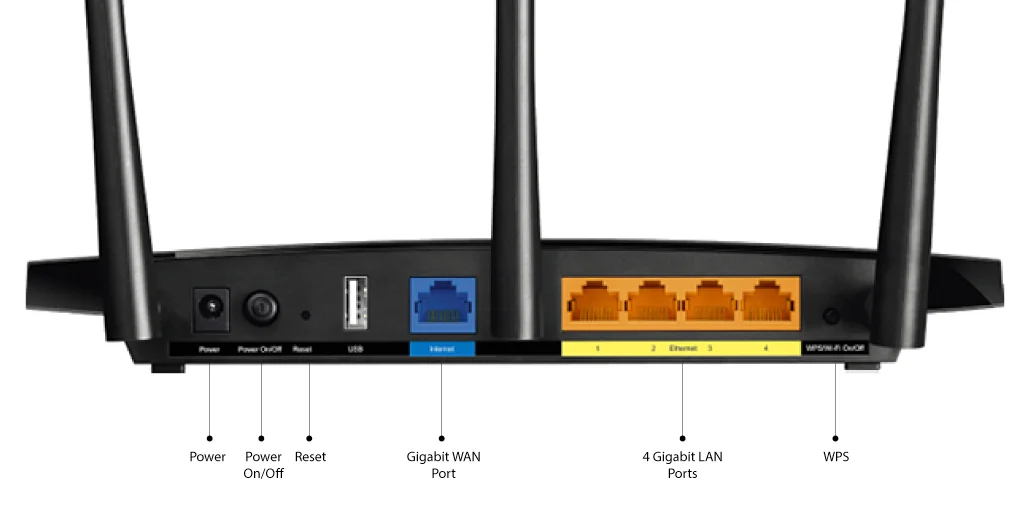

Hardware Features
Interface 4 10/100/1000Mbps LAN Ports
1 10/100/1000Mbps WAN Port
1 USB 2.0 Port (local storage only, no print or file-sharing)
Buttons WPS/Reset Button
External Power Supply12VDC / 1.0A w/ 5.5mm (Outside barrel) x 2.5mm (Inside Barrel) Center: Positive Tip
Antenna typeTwo 2.4 and two 5GHz 5dBi antennas
